Cooltron FA2260B22T7C-31 220 mm AC Axial Fan, 220-240 V, Dual Ball Bearing, with Wire Finger Guard
Cooltron FA2260B22T7C-31 220 mm AC Axial Fan, 220-240 V, Dual Ball Bearing, with Wire Finger Guard
Genuine Cooltron FA2260B22T7C-31 heavy-duty AC axial fan in the common 22060 (220 x 220 x 60 mm) round-frame industrial size, with a matching chrome-plated wire finger guard. New, unused surplus stock in the original Cooltron factory cartons. Ships from Land O Lakes, Florida within 1 to 2 business days.
IMPORTANT: THIS IS A 220–240 VOLT FAN. IT WILL NOT RUN ON A STANDARD US 110/120 V OUTLET.
Rated 230 V AC, 50/60 Hz, single phase. It is built for 220–240 V circuits: industrial and commercial equipment, electrical control panels, machinery and welders, HVAC and refrigeration units, server and telecom racks fed with 208–240 V, kilns, ovens and dryers, UPS and battery cabinets, and export equipment for 220–240 V countries. A US buyer needs a 240 V circuit or a 120-to-240 V step-up transformer of at least 100 VA. Please check your supply voltage before ordering.
Specifications
- Model: Cooltron FA2260B22T7C-31 (FA2260C-31 heavy-duty series)
- Voltage: 230 V AC rated, 220–240 V AC operating range, 50/60 Hz, single phase
- Current: 0.25 A at 50 Hz / 0.26 A at 60 Hz
- Size: 222 mm diameter x 60 mm deep (8.74 in x 2.4 in); fits any 220 mm / 22060 cutout
- Mounting: 6 holes, 4.5 mm, on a 212 mm bolt circle; the guard uses the same bolt circle
- Bearings: dual ball bearing motor
- Motor protection: thermally protected and impedance protected, capacitor-run
- Frame: die-cast aluminum, painted black; 5-blade PBT impeller, UL 94V-0
- Airflow: high-flow class, approx. 490 CFM max per Cooltron distributor data for the C-31 series (confirm against the Cooltron FA2260 datasheet for critical applications)
- Noise: approx. 53–61 dBA (series data)
- Connection: two quick-connect spade terminals on the motor hub. No power cord or plug is included.
- Operating temperature: -10 to +70 °C
- Approvals: UL/cUL Recognized component (file E194726), CE, TUV
- Weight: 1.43 kg (3.15 lb) per fan
- Origin: made in China for Cooltron Industrial Supply, Walnut, CA
What is included

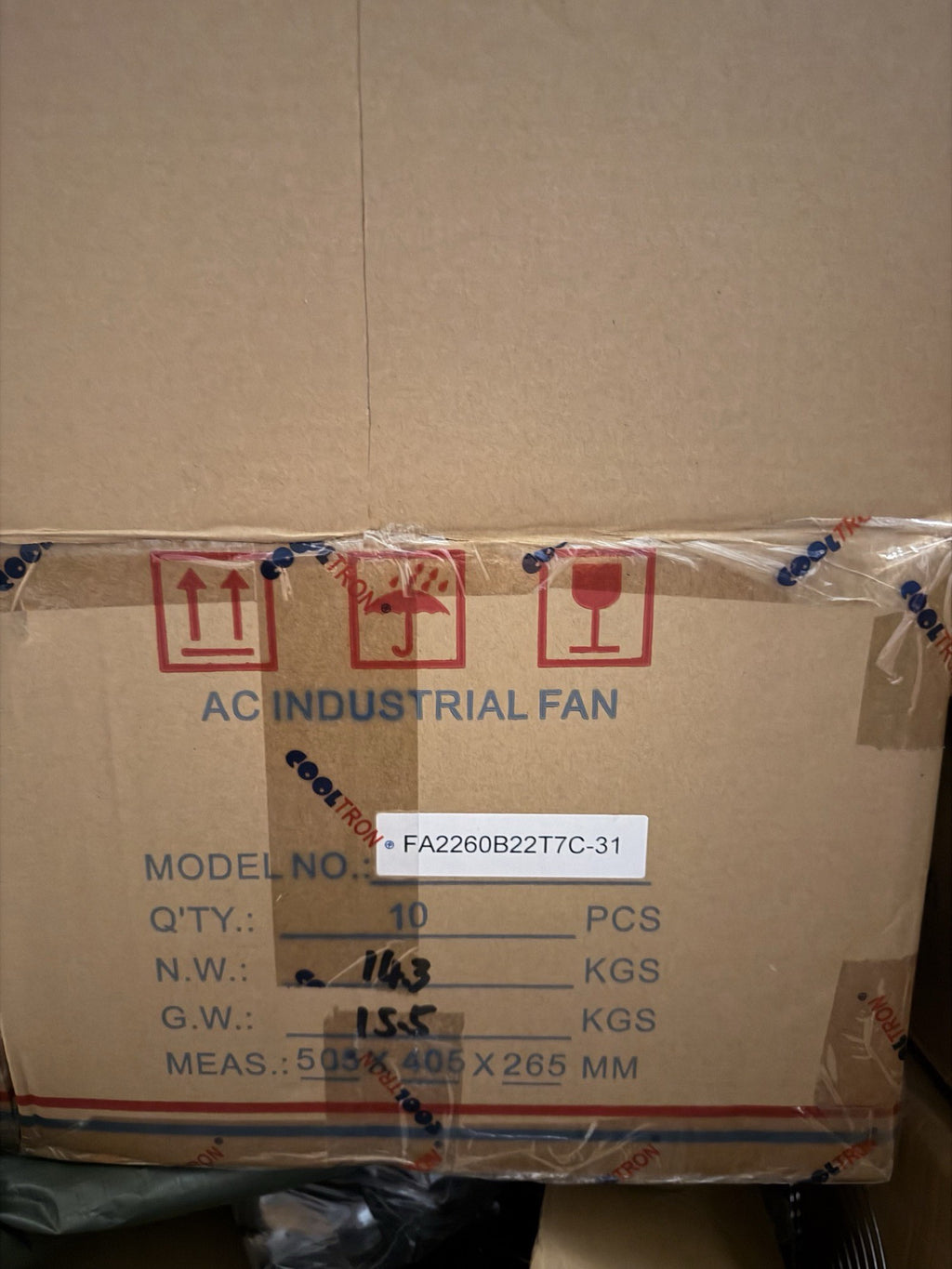

- 1 x Cooltron FA2260B22T7C-31 fan, new, in the original factory carton

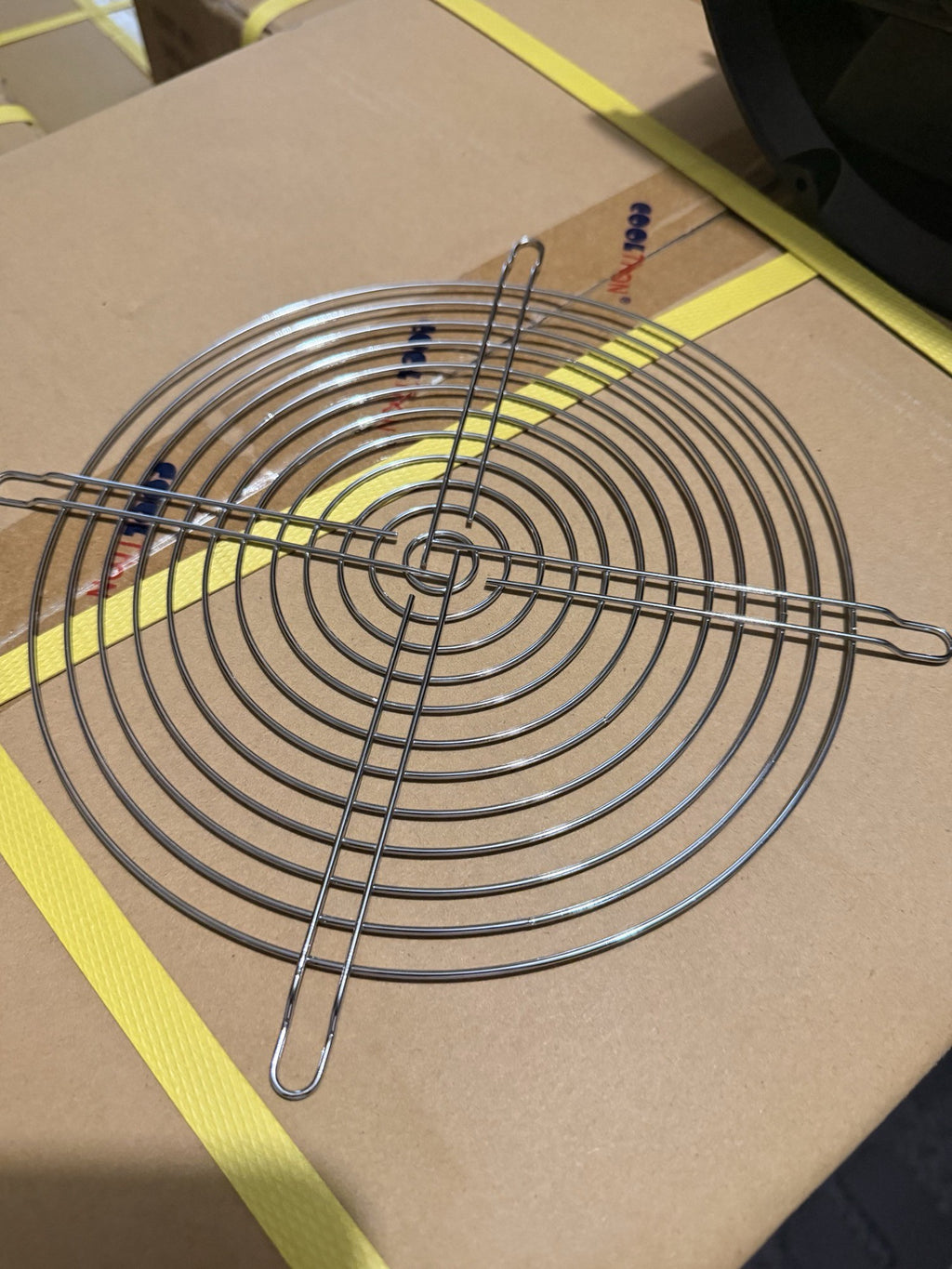

- 1 x 220 mm chrome-plated wire finger guard (same 212 mm bolt circle)
- Mounting screws and power cord are not included
Typical uses
Cooling and exhaust for electrical control cabinets and enclosures, CNC and machine-tool electrical boxes, welding machines and inverters, UPS and battery cabinets, telecom and network racks on 208–240 V, commercial refrigeration and HVAC air movers, laser and plasma cutters, kilns, ovens and dryers. A direct replacement for 22060-size 220 V fans such as the Maxair BT22060B2H, KAKU KA2206HA2, SZR22060B2H, JY22060HBL2 and XFAN RAH2260B1-C.
Shipping and quantity pricing
- Free shipping anywhere in the United States, shipped within 1 to 2 business days from Land O Lakes, Florida. Multiple fans ship together in one box.
- 180 units in stock. Need 10 or more? Full factory cartons of 10 are available; request quantity pricing through our Bulk & Wholesale Quotes page.
Please note
- 220–240 V only. Not for 110/120 V household power.

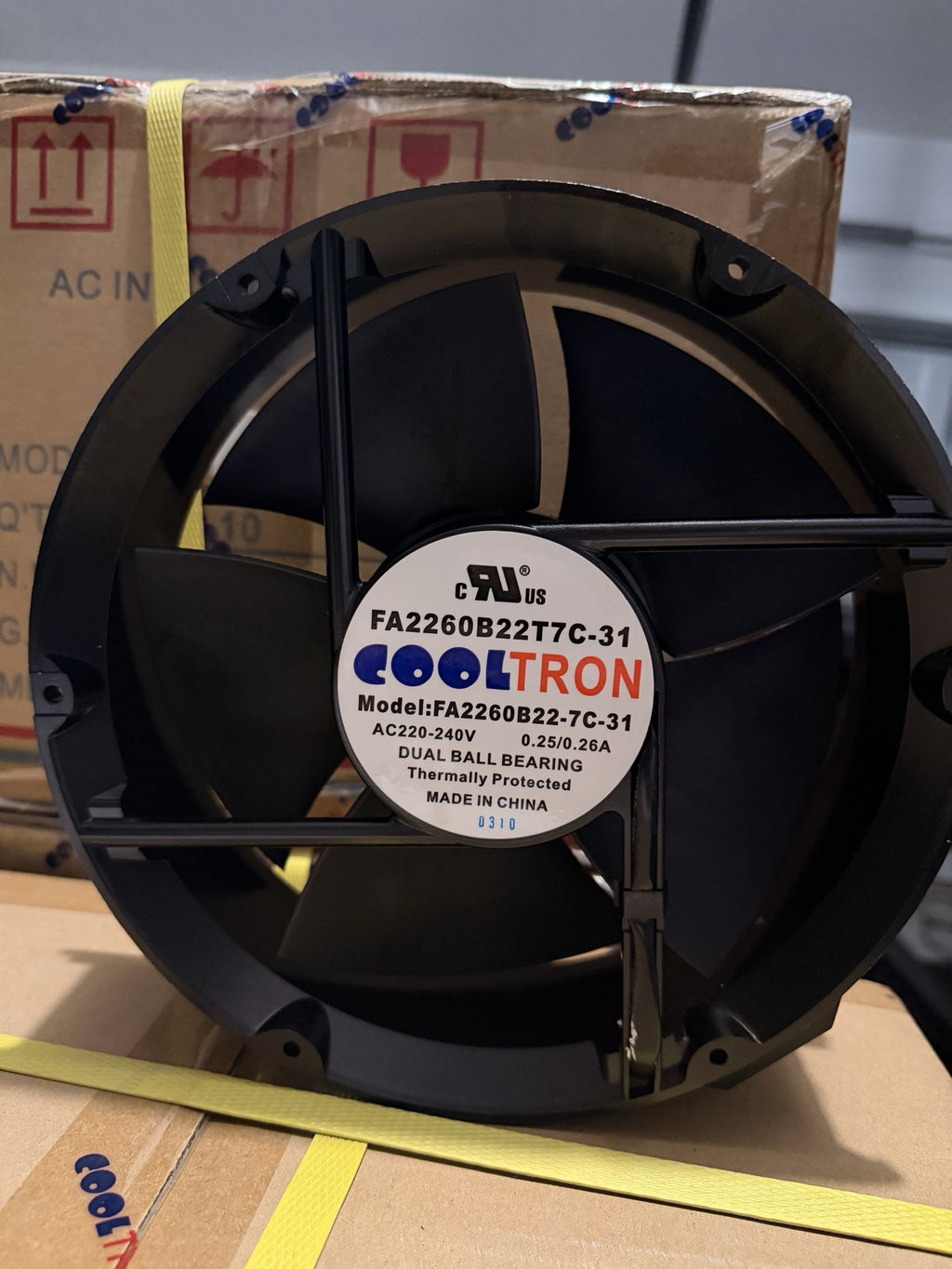

- Spade-terminal connection, no cord. Photos show the actual terminals and the rating label.
- Surplus stock: the fans are new and unused, but manufacturing date codes vary. Every fan is inspected before shipping.
- Caster Supply LLC is an independent reseller of new, unused surplus stock and is not affiliated with Cooltron Industrial Supply. Other manufacturers' part numbers are listed for size cross-reference only.
